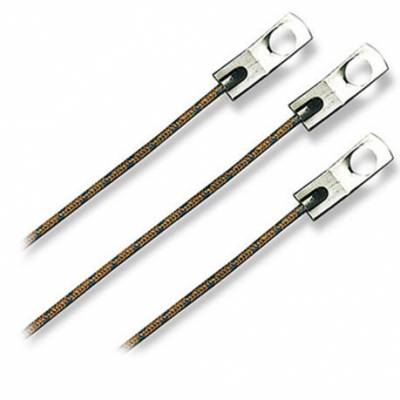

OMEGA***的耐高温J、K、E或N型热电偶系列受到耐磨Inconel?外部编织层和耐高温纤维绝缘层的双重保护。连续使用时耐高温达980°C (1800°F)，短期使用耐高温为1038°C (1990°F)，这让这些产品非常适合多种高温测量应用。它们与烤箱和火炉轮廓的贴合程度是其它产品望尘莫及的。20号线规单股热电偶线使用编织陶瓷纤维作为绝缘层。陶瓷纤维外覆结实耐用的Inconel 600层，Inconel 600是一种坚韧的镍含量高耐高温合金。提供有5种便利类型，长度有1和3 m（3和10&＃39;），适合高温测量应用。

High temperature insulating layer and Inconel external braided layer are integrated

Soft and wearable

Bearing high temperature up to 1038 degrees C (1990 degrees F)

The best contour for ovens and stoves

Five convenience models make it easier to use

J, K, E or N thermocouple indexing numbers are available

OMEGA&＃39;s unique high-temperature J, K, E or N thermocouple series are protected by wear-resistant Inconel #external braided layer and high-temperature fiber insulation layer. High temperature resistance is 980 C (1800 F) for continuous use and 1038 C (1990 F) for short-term use, which makes these products very suitable for various high temperature measurement applications. Their fitness to the contours of ovens and stoves is beyond the expectation of other products. Braided ceramic fibers are used as insulating layer for single thermocouple wires of gauge No. 20. Ceramic fibers are coated with a strong and durable Inconel 600 layer. Inconel 600 is a tough alloy with high nickel content and high temperature resistance. Five types of convenience, 1 and 3 m (3 and 10&＃39;) in length, are provided for high temperature measurement applications.

Specifications:

Gauge: Standard Limited Error of No. 20 Single-strand Line

Insulation Layer: Silica or Ceramic (Nextel #4) Fiber

External Braided Layer and Joints: Inconel 600 **

Temperature: High temperature resistance is 980 C (1800 F) for continuous use and 1038 C (1990 F) for short-term use, depending on the type of thermocouple.

Termination: Ceramic Beaded conductor with compensating spade connector, OMEGA public connector or OMEGA NHXH high temperature 650 C (1200 F) ceramic public connector OMEGA&＃39;s unique high temperature J, K, E or N type thermocouple series
